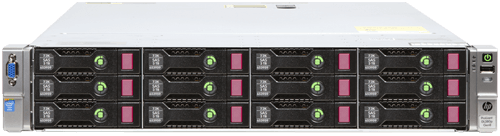

HP Proliant DL380p
Gen8 (2xE5-2630v2) 12-LFF



An edition that contains a processor upgrade to a very good server. Every single component was built for performance and reliability. It offers the highest performance for the value with an impressive RAID controller and large storage. The 2 x 10G Intel 85999 is the standard for high performance networking.

Total price:

Quantity
Price $0
Delivery 7 days or less

PRODUCT SPECIFICATIONS

Good For
Compute&Storage
Processor Model
2x Xeon E5-2630 v2
Processor Core
12 core, 24 threads in total for both CPUs
Processor Frequency
2.6 GHz, turbo up to 3.1 GHz
Processor Technology
2nm Intel Ivy Brige-EP platform, launched in September 2013
Processor Score
13922 recorded by PassMark
Motherboard
HP based on Intel C600 Series Chipset
Power Supply
Two (full-redundant) power sources,460W CS Platinum (94% Efficient) @ 100-120V; 200-240V


Hardware


RAM
RAM
32 GB ECC Registered DDR3-1600MHz (PC3-12800R)

RAM Type
DDR 3

RAM Upgrade
Up to 384 GB DDR3-1600MHz (PC3-12800R), 24 RDIMM slots. The memory bandwidth in this system is up to 51.2GB/s.



OS Storage
OS Storage Controller
Intel C600 PCH. Supports SATA drives at speeds up to 3Gb/s (SATA2)

OS Drives
A dedicated SSD drive for 'OS' (operating system) is available as a standard option. You can also choose to not install a dedicated 'OS' drive and have the operating system installed on 'Data' drives.

Drives for OS



Data SSD/HDD Storage
Data Storage Controller
HP Smart Array P420i/1GB Flash Cache (SAS 6Gb/s; SATA3 6Gb/s; RAID 0, 1, 10, 5, 50, 6, 60)

Data Drives
No HDD/SSD for 'Data' included in standard configuration

Data Drives Supported (Internal)
No Hard Drive included. Supports up to 12 hot-plug LFF (3,5") or SFF (2.5") SATA/SAS. Storage backplane is wired for SATA3 6Gb/s or SAS 6Gb/s which means the maximum output for each individual drive is ~550 MB/s regardless how fast are the drives chosen.

Drive bays 1-8 are connected point to point to controller and the last 4 bays are connected through an expander, which halves the maximum throughput (~550MB/s) of the these bays as well bays 5-8 when are used simoultaneously




Data NVME Storage
PCI Express Slots
  • Slot 1 PCIe 3.0 x16 full-height, half-length
  • Slot 2 PCIe 3.0 x8 full-height, half-length
  • Slot 3 PCIe 2.0 x4 full-height, half-length



    • Data External Storage
    Storage Boxes Connectivity

    Do you need more HDDs this server supports? Storage capacity can be enhanced with external storage boxes that work like internal hard drives.



    Connectivity


    Network Access
    Network Access


    Software


    Software
    Operating System



    Backup
    Backup with R1Soft



    Software Support
    SLA For Software
